What Is Compacted Graphite Iron?

If you've built engines, you know the two dominant block materials: gray cast iron and aluminum. Gray iron is cheap, stiff, and has good vibration damping, but it's heavy and relatively brittle under high loads. Aluminum is light, but it's weaker in tension, distorts more under heat, and usually needs iron cylinder liners pressed in.

Compacted Graphite Iron sits in a different category entirely. The graphite particles inside CGI are short, thick, and worm-like, interconnected throughout the iron matrix. Compare that to gray iron where graphite forms thin flakes (stress concentrators that propagate cracks) or ductile iron where graphite forms isolated spheres (strong, but poor thermal conductivity).

CGI's vermicular graphite structure gives you the best mechanical tradeoffs of both worlds: higher tensile strength than gray iron, better thermal conductivity than ductile iron, and dramatically superior fatigue resistance across the board.

These numbers translate directly to engine performance. A CGI block can hold more cylinder pressure, survive more thermal cycles, and maintain tighter tolerances over its service life than a gray iron or aluminum block in the same application.

Why CGI for the Gen III HEMI?

The Gen III HEMI (5.7L, 6.1L, 6.2L, 6.4L) has become one of the most popular platforms in American performance. Challengers, Chargers, Rams, Trackhawks, TRXs, drag cars, tractor pullers, boats. The aftermarket for this engine family is massive.

But look at what's available for blocks. You can get the factory cast iron block, which tops out at roughly 1,000 hp before the main caps and cylinder walls become liabilities. You can step up to an aftermarket cast iron block with better reinforcement. Or you jump to a billet aluminum block at $8,000-$15,000+, which is overkill for most builds and still requires sleeves.

There's a gap. A significant one. Builders pushing 1,200-2,500+ hp on boost or nitrous need a block that won't split, won't walk the mains, and won't distort the bores under thermal load. CGI fills that gap with material properties that fundamentally outperform cast iron at the molecular level, at a price point well below billet.

CGI vs. Gray Iron vs. Aluminum

Here's how the three materials stack up in the properties that matter most for high-performance engine blocks:

The takeaway: CGI delivers the structural performance of a much more expensive billet solution, the thermal stability that aluminum can't match at high cylinder pressures, and meaningful weight savings over traditional iron, all while running parent bore surfaces with no liners required.

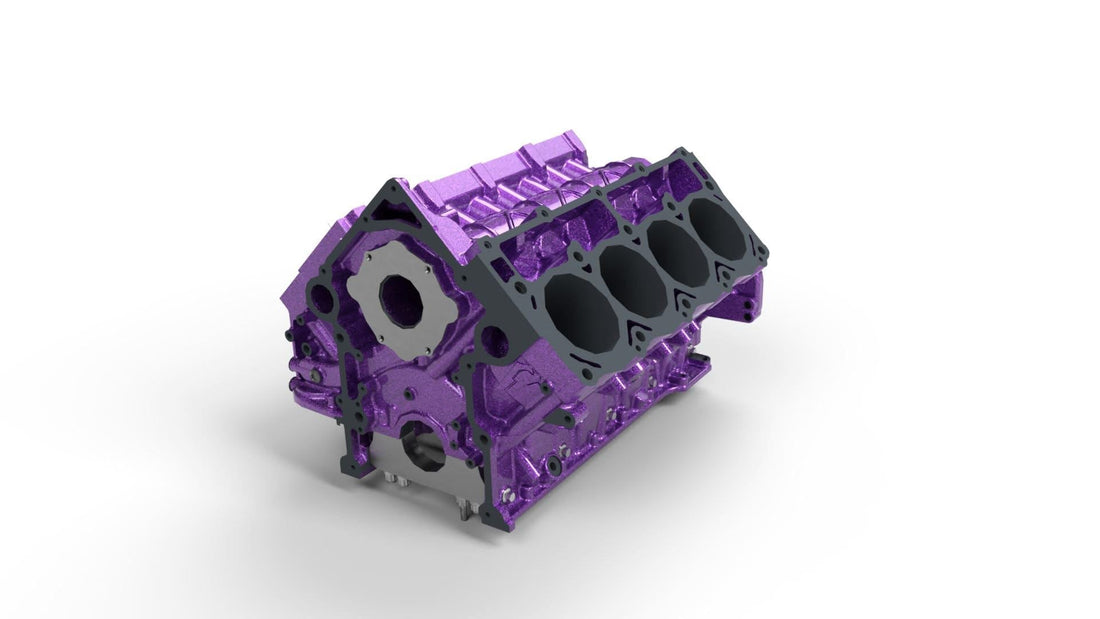

How We Manufacture the ACEINC CGI Block

Making CGI is harder than making gray iron. The metallurgy is less forgiving, the process window is tighter, and the machining demands specialized tooling. That's exactly why nobody has done this in the HEMI aftermarket. Here's how we do it.

ACEINC-Specific Design Features

This isn't a copy of the factory block cast in better material. We redesigned key areas to address the known failure points of the Gen III HEMI platform under high power.

Who Is This Block For?

The ACEINC CGI block is built for anyone pushing the Gen III HEMI past what the factory block can handle. That includes NHRA and IHRA drag racers running forced induction or nitrous at 1,200 hp and above, tractor pull competitors who need a block that survives sustained high-RPM abuse, marine applications where thermal cycling and vibration destroy weaker blocks, and street/strip builds where reliability matters as much as peak power.

If you're building a serious HEMI, whether it's a 392 stroker on boost or a dedicated race motor, this block is the foundation you've been waiting for.
